CNC Table Moving BERGONZI STRATOS mod. 20XL
Sold
CNC Table Moving BERGONZI STRATOS mod. 20XL
Location:Brugali, Italy
Specifications
| Condition | Used |
| Transverse travel of the head (axis y) | 2000 mm |
| Longitudinal travel of the head (axis x) | 2000 mm |
| Vertical stroke of the head (axis z) | 450 mm |
| Passage between the columns | 2100 mm |
| Table dimensions | 1400×2000 mm |
| T-slot dimensions on the table | 18 mm |
| Allowable load on the table | 2800 Kg |
| Min-max distance between spindle and table | 165-615 mm |
| Spindle speed ranges | 40-1000/1001-3000 RPM |
| Spindle taper | ISO 40 |
| Spindle power | 15 Kw |
| Rapid feed speed x-y | 12000 mm/min |
| Rapid feed speed z | 15000 mm/min |
| Milling capacity on steel | 300 cm3/min |
| Drilling capacity on solid steel (with hss drill) | 50 mm |
| Drilling capacity on solid steel (with tool tips) | 40 mm |
| Tapping capacity on steel | 30M mm |
| Approximate weight of the complete machine | 8000 Kg |

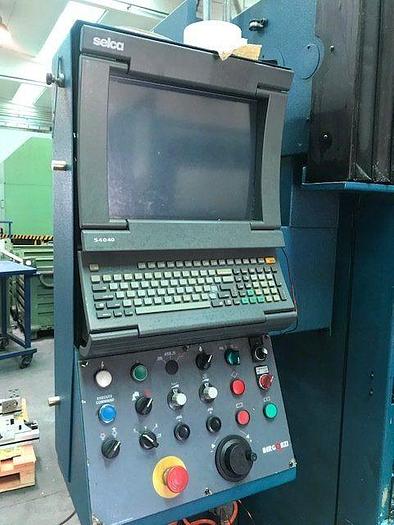

| Cnc | SELCA 40/40S |
