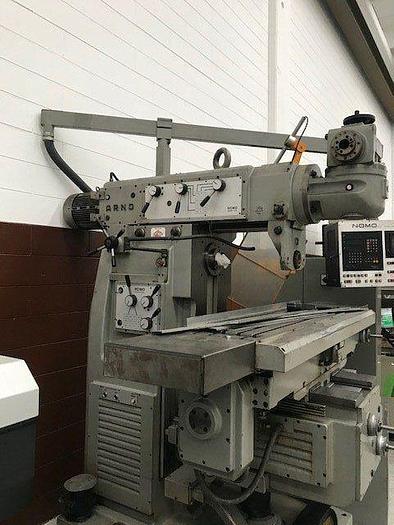

Universal Milling Machine ARNO
Sold
Universal Milling Machine ARNO
Location:Brugali, Italy
Specifications
| Condition | Used |
| Table size | 2050×660 mm |
| Maximum permissible load | 2500 Kg |
| Axis travel x | 1600mm |
| Axis travel z | 650 mm |
| Axis travel y | 1000 mm |
| Cnc | SELCA 1200 |
| Advancement of work | 10-3000 mm/1’ |
| Rapid | 10000 mm/1’ |
| Motor torque axis ac | 12 Nm |
| Spindle power | 15 HP |
| Spindle speed | 10-3000 RPM |
| Refrigerant liquid pump | 0.5 HP |
| Hydraulic power motor | 1 HP |
| Guide lubrication pump | 0.15 HP |
| Total power | 24 HP |
| Weight of machine | 8400 Kg |
