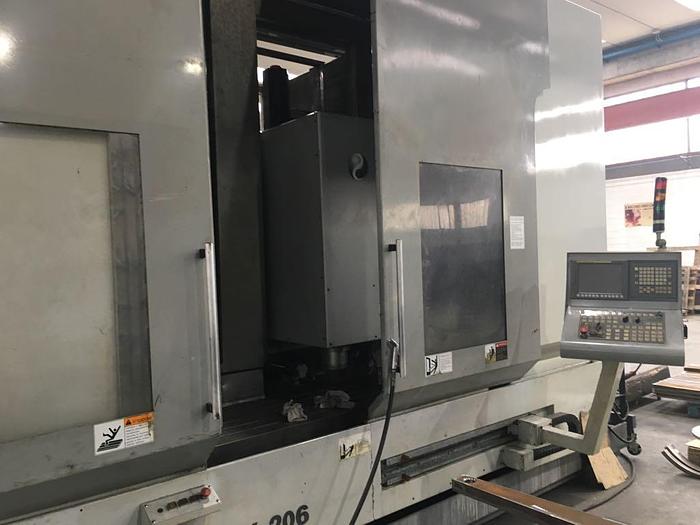

Machining Centre Column Movie PERFECT JET mod. MV206
Sold
Machining Centre Column Movie PERFECT JET mod. MV206
Location:Brugali, Italy
Description
Spindle with coaxial motor
Coolant system of main spindle by refrigerator
High pressure automatic coolant system through spindle
Specifications
| Condition | Used |
| Axis travel x | 2000 mm |
| Axis travel y | 600 mm |
| Axis travel z | 550 mm |
| Spindle nose distance – table top | 180÷730 mm |
| Rappid traverse x/y/z | 30/30/15 m/1’ |
| Advancement in axis work x/y/z in interpolazione lineare (max) | 7500 mm/1’ |
| Ball screws diameter x/y/z | 50/50/50 mm |
| Table dimensions with slots a “t” | 2500×600 mm |
| Cone size | ISO 40 |
| Cnc | FANUC SERIES Oi-MC |
| Spindle rotation speed | 100-10000 min-1 |
| Spindle motor power | 15/18.5 Kw |
| Maximum spindle motor torque | 95/117 Nm |
| Tool storage capacity | 30 nr |
| Tool change time | 1.8/n.d. s |
| Coolant collection tank capacity | 450 litri |
| Pneumatic pressure | 6 bar |
