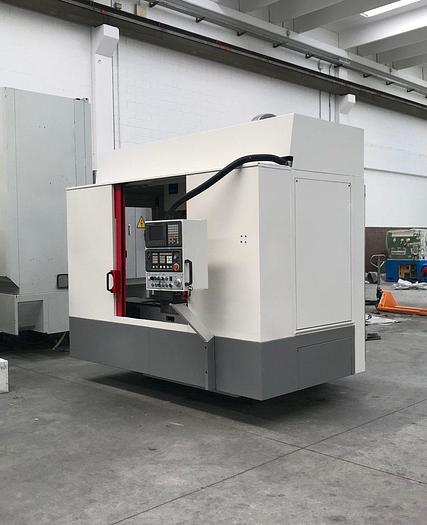

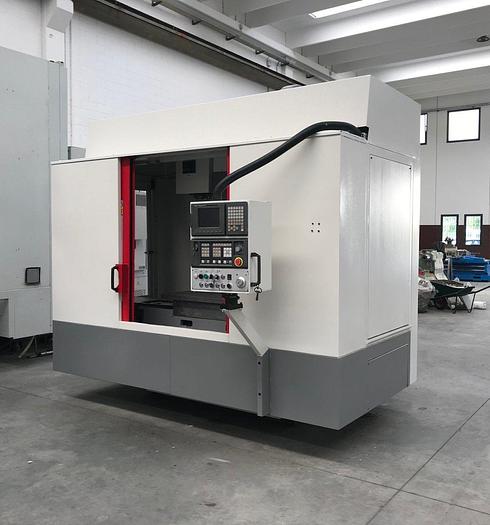

Vertical Machining Centre EIKON mod. VMC 1000
Sold
Vertical Machining Centre EIKON mod. VMC 1000
Location:Brugali, Italy
Description
- 4° axis
Specifications
| Condition | Used |
| Table dimensions | 1200x500 mm |
| Axis travel x | 1000 mm |
| Axis travel y | 550 mm |
| Axis travel z | 600 mm |
| Space between table and spindle | 166 mm |
| Number of loading positions | 20 |
| Max. tool diameter | 100 mm |
| Max. length tool | 300 mm |
| Max. weight tool | 5 kg |
| Chip to chip time | 3 s |
| Loading capacity of table | 500 kg |
| Nr. pallet | 1 |
| Spindle power | 15 Kw |
| Spindle speed | 800 RPM |
