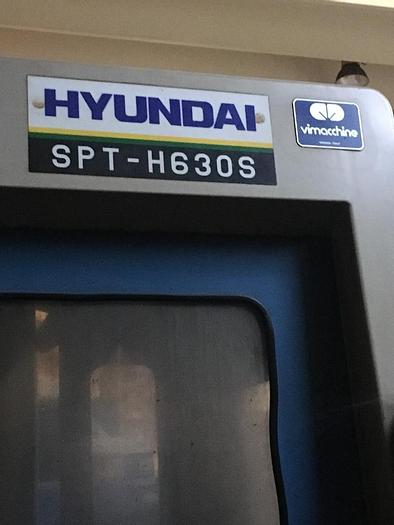

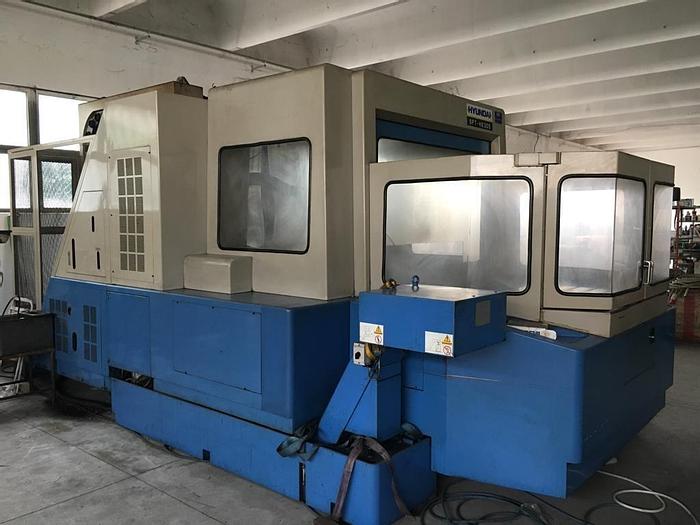

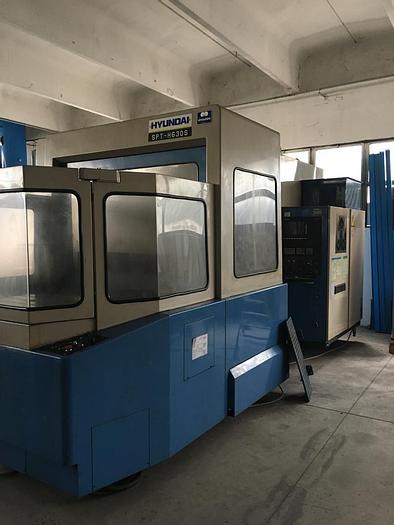

2002 Hyundai SPT-H630S

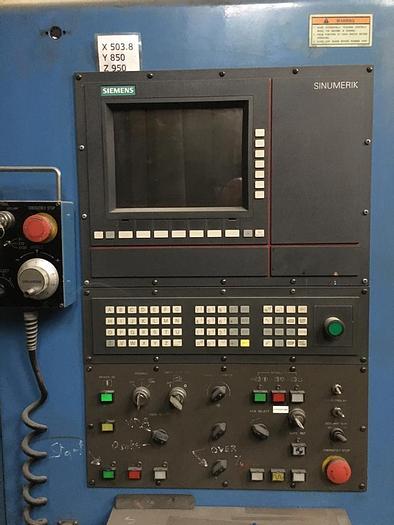

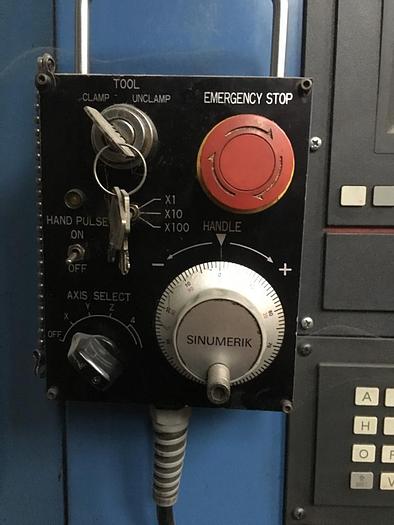

Controllo: Siemens 840C

Travels: X 1000 – Y 800 – Z 750

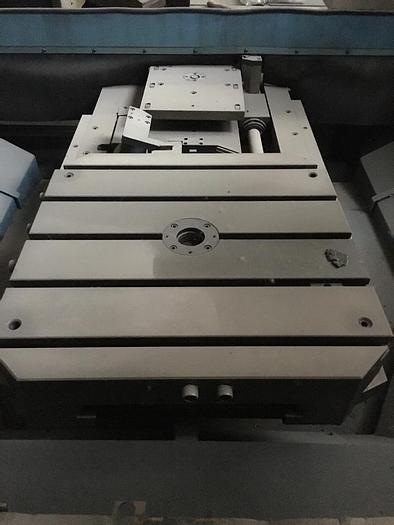

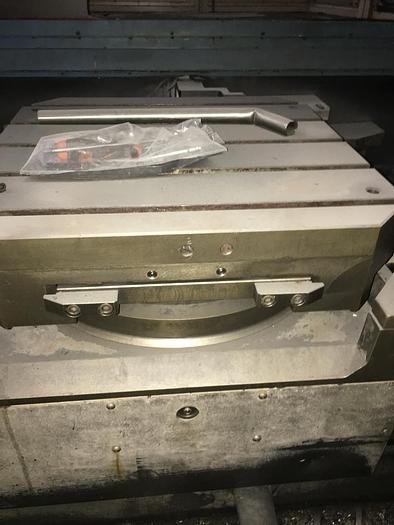

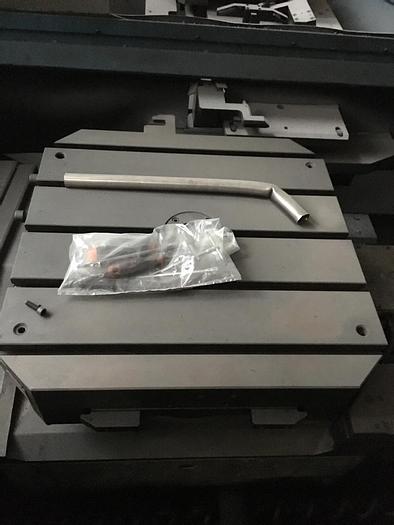

Table size: 630x630

Degreeof rotation of each pallet 1°

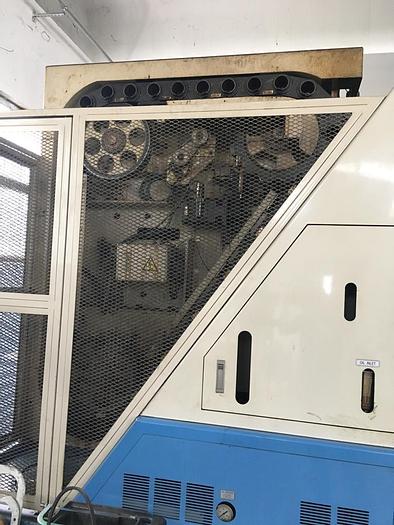

ATC 40nos, ISO 50

Number of pallets 2

Table load 1200 kg

X-Axis travel 1000 mm

Y-Axis travel 800 mm

Z-Axis travel 750 mm

Min./max. centre to pallet surface 50-850 mm

Min./max. spindle nose to pallet centre 200-950 mm

Table Index 360 x 1 °

Time needed for table index 90°/180 sec

Maximum cutting feedrates X-, Y- and Z-Axis 8 mm/min

Rapid traverse X-,Y- and Z-Axis 20 m/min

Index speed table tr/min.

Tool change time (tool to tool) 3,6 sec.

Tool change time (Chip to chip) 9 sec.

Maximum tool diameter with adjacent tool 130 mm

Maximum tool length 400 mm

B9znv3k73

Maximum tool weight 27 kg

Spindle speed 2 steps 22-4500 tr/min.

Spindle tool taper 50

Spindle motor 30 min/continuous rating 20/15 kW

Maximum torque on spindle 795 Nm

Required floorspace length x width 5665 x 2930 mm

Machine height 3375 mm

Machine weight 17000 kg
